Service order

Read also:

• Add Customer
• Add Service object
• Add facility
• Create a service  template

A service order is a planned maintenance and is the basis for creating a service protocol. Depending on the settings you have chosen, comments from the previous service will automatically appear and what material should be used for the type of service it is time for.

The service system automatically keeps track of how often and what type of service should be done on your models and then generates the correct service order.

The service orders are located under the menu selection Perform.

Search Service order

Click this button to filter your search.
For example: select those assigned to you, limit by date, customer, a specific order type or orders in a specific subgroup, etc.

If you want to use the same filter more than once, you can choose to Save Settings (at the bottom right of the box).

Learn more about Saving as favorite.

You can browse between the service orders, either by clicking on an order in the list or by browsing with the arrows in the upper right corner within an order.

If you have used a filter for your search among orders, you will browse through that selection.

If you want to search for a specific order and know the number, you can type an * before the number.

By default, Ready for Billing and Invoiced orders are mixed.

Detail view or list view?

Export list with service orders

First select the filters you want for your list by performing a search. Without filters you will get all service orders. Then click this symbol to export/download a list of service orders (csv file).

Print service order

Filter out which orders you want to print by searching, sorting or clicking in the filter settings. Then click on this symbol. Here you can then either select all by clicking in the top box or filter further by clicking on a customer, a name, status etc. Learn more about the collection function.

The Print button creates a PDF with all selected service orders.

If you only want to print one (1) order, open the order and click Print at the bottom.

Create a service order

There are several ways to create a service order.

1. When you add a new service object, service orders can be created automatically at the interval(s) you specified in the service object settings.

   Learn more about adding service objects.

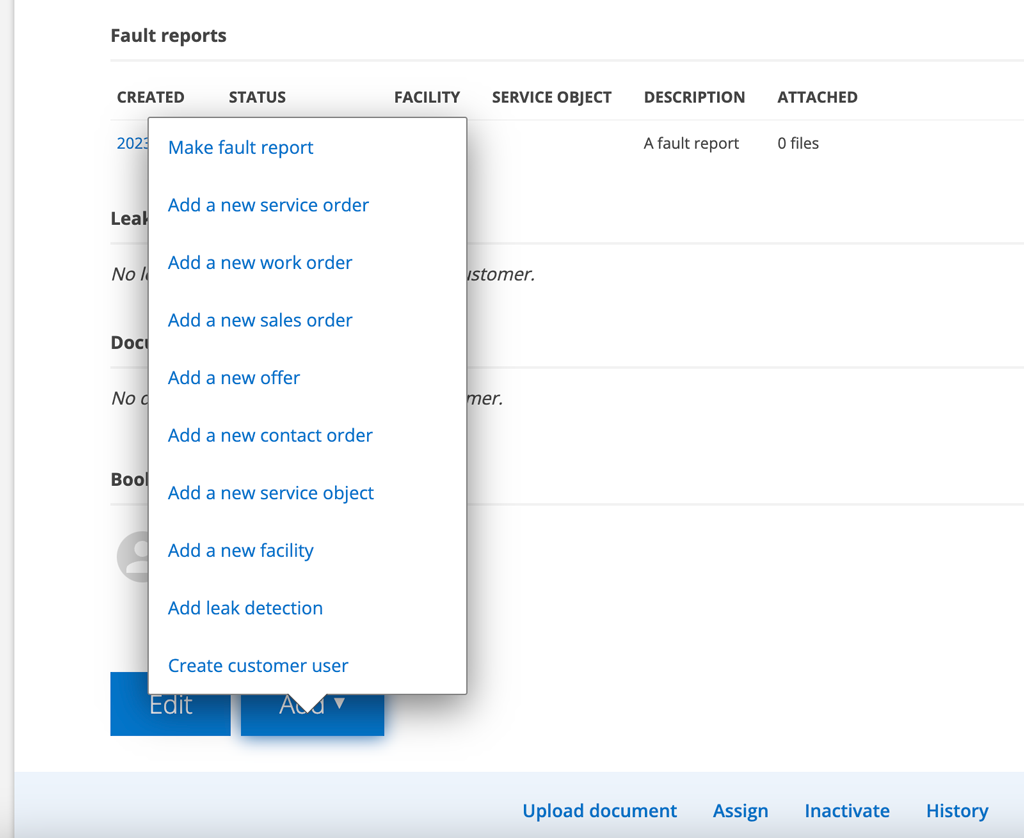

2. On a service object record. Scroll down to the bottom and click Add. There you can select Add a new service order.
3. Add a service order by clicking the plus sign under Perform – Service Order. Note that this does not create a recurring service interval on the object. See point 1.
4. If there is a service plan on a service object that does not have a next service, you can find it by filtering “Without next service” in Search. Open the service object. At the bottom, you will find the Generate Service button, which will create a service order. Do you have many such objects? Use the Collection function!
5. In the Planner. Learn more here.

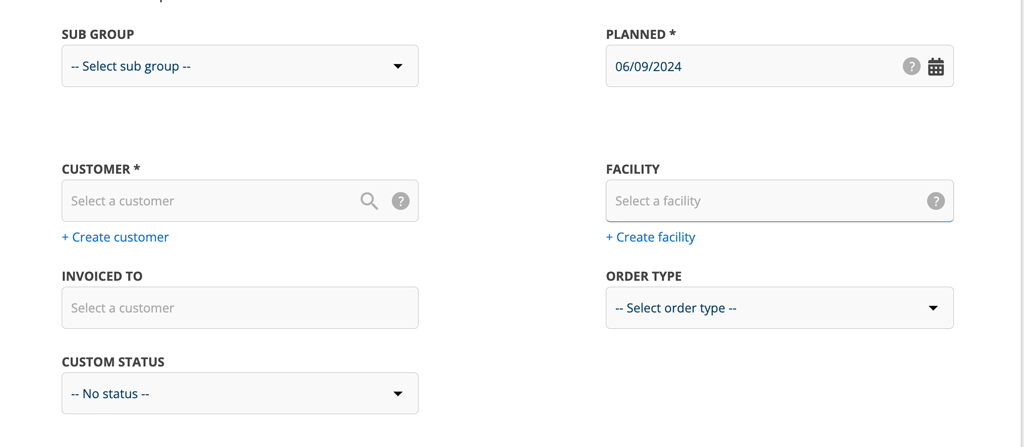

Here we go through the different fields in a new service order.

SUBGROUPS

If your group/company has created Subgroups, you will see these at the top and can choose which subgroup the order should be created for. Subgroups are created by an administrator. See Group settings – Modul settings– Edit group settings.

SELECT CUSTOMER

Required field.
Type the customer’s name in the box or click the magnifying glass in the search box to search more precisely. Great if you have many customers with the same name!

The search function helps you find existing customers.
If the customer is not in the list, enter the customer’s name and the customer will be automatically added to the Customer Register.

If there are pre-selected service articles linked to the customer, these will be loaded into the order automatically.

TIP: You can also go to the Customer Register to create an order for the customer. Click on the Customer and then on Add... at the bottom of the Customer page.

FACILITY

Place the cursor in the field and all facilities linked to the customer will be listed.

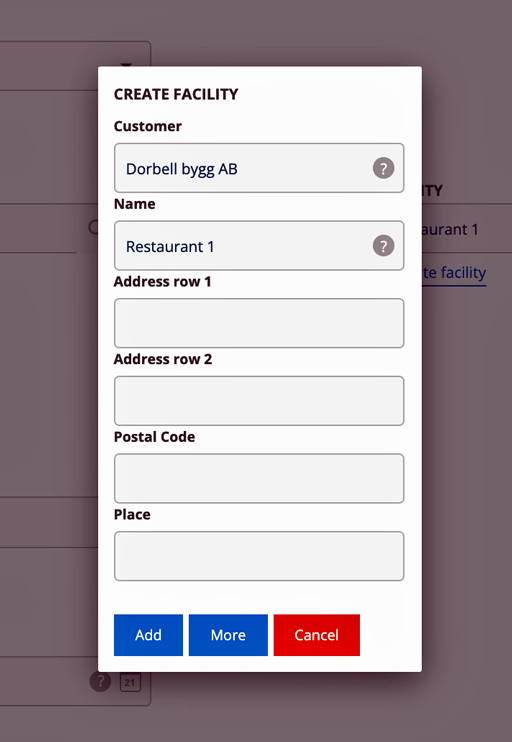

If the facility is not in the list, click on +Create facility and a box will open where you can fill in the information. Click on Add when you are finished.

If you want to enter more information about the facility, click the More button and the facility will open in your Facility Register in a new tab in your browser. Fill in and save the information.

NOTE! Have you already added service objects to the order? Then you need to decide whether you want to move all service objects to the new facility. If not, all service objects will be cleared from the order.

If the billing address differs from the service object’s address, a facility must always be selected or added.

If there are service points on the site, these will be displayed on the order. If there are articles on the facility, you will be asked whether to add these to the order.

Invoiced other customer

Here you specify the customer to be invoiced if it is different from the customer listed on the order.

If you add an order to a facility that is invoiced to another customer, that customer will automatically be included in the order. If the service object has a different invoiced to another customer set – this customer will be selected instead of the facility’s.

To make “invoiced to another customer” appear you need to select that in the Group settings. Läs hur du gör det här.

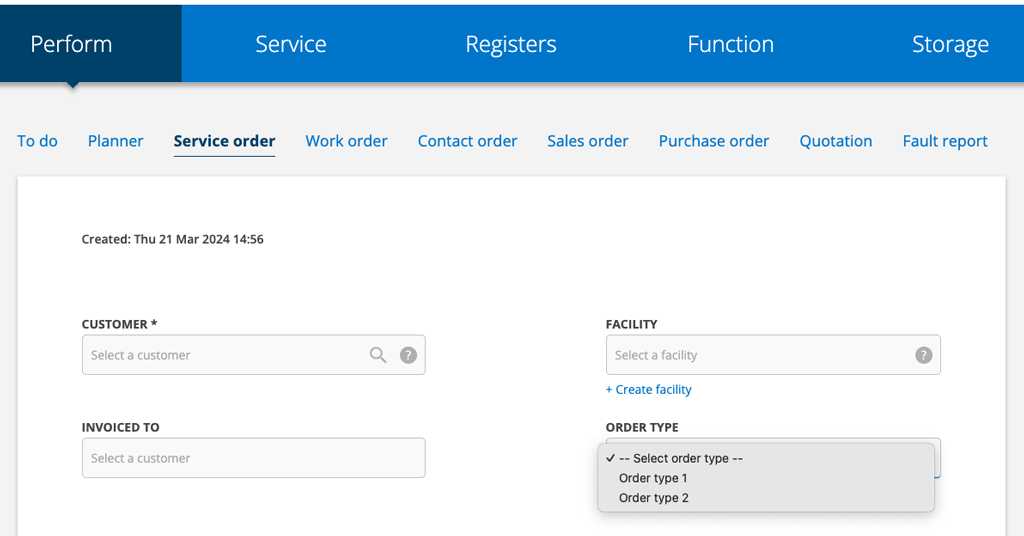

Order type

Select order type. If you have not entered any order types, the field will not be displayed.

Learn how to add order types here.

Status

The status function helps you quickly keep track of what is happening with the different orders.

Depending on what you have selected, you can see:

• the systems field Status
• system Status and CUSTOM STATUS
• only CUSTOM STATUS

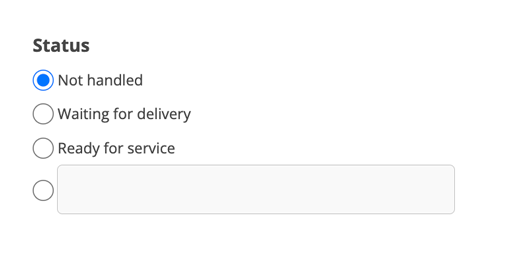

System status

You will only see the system status bar after you have saved your service order.

Choose between:

• Not handled
• Waiting for delivery
• Ready for service
• Free text field

TIP: Using the search function (blue button with the check mark) at the top under Service Orders, you can quickly sort/filter the orders based on status.

Waiting for delivery

You use this status if parts need to be ordered for the order. Extra fields open on Parts (under the Service object) where you can specify whether the parts are ordered etc. and delivery date if any. When you save the order, a message is sent to the email address you have set under Service order settings for this.

CUSTOM STATUS

Select among your own custom statuses from the drop-down list.

Learn how to set your own custom status suggestions.

Planned

Required field.
Service order setting that affects: Update planned date on booking.

The date for when a service should be performed is automatically calculated by the system when you choose to generate a service, as well as when you perform a service and a service protocol has been created.

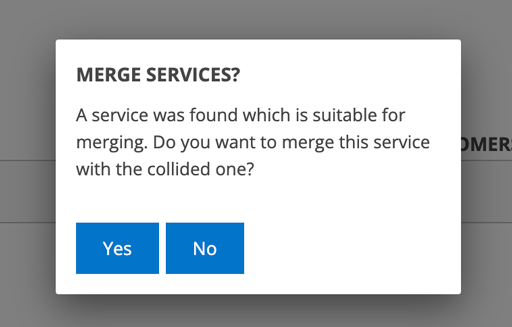

However, the date can be changed manually. When the date is changed, the system will check if the service is close in time to other service events at the same facility and can thus merge services that fall close together.

This is called the service collision interval and helps you organize service efficiently.

If you change the value (number of days), services that have already been generated will not be affected, but only new and changed (e.g. planned date) services will be merged. You will get this popup asking if you want to merge these services. If you answer no, each service will still be a separate order. If you answer yes, the service object will be merged into one order.

Contact information

Place the cursor in the field and all contact information entered on the Facility will be listed. Select the appropriate contact and the information will be filled in automatically.

If contact information is missing, fill in the information. The contact will also be automatically added to the facility in the Facility Register.

Object

The system lists all objects from the selected FACILITY when you place the cursor in the Object field. If you have not selected a facility, the service order will be created directly under the customer and you cannot use the service collision interval function. The service collision interval setting is made on the Facility.

You can also start by adding a service object. The system will then automatically retrieve information about the customer and any facility.

If you need to change the information about the service object, click on the pencil to the right of the object name. A popup will open where you can make your changes. You can also upload images and documents here.

If you want to create a new object, click on + Add service object. A form will open where you can add an object. The object can then be edited/completed. You will find all your objects under the menu Service – Service objects.

When you have selected an object, all Service components associated with that object are retrieved. If you want to add more service components, click + Add service components.

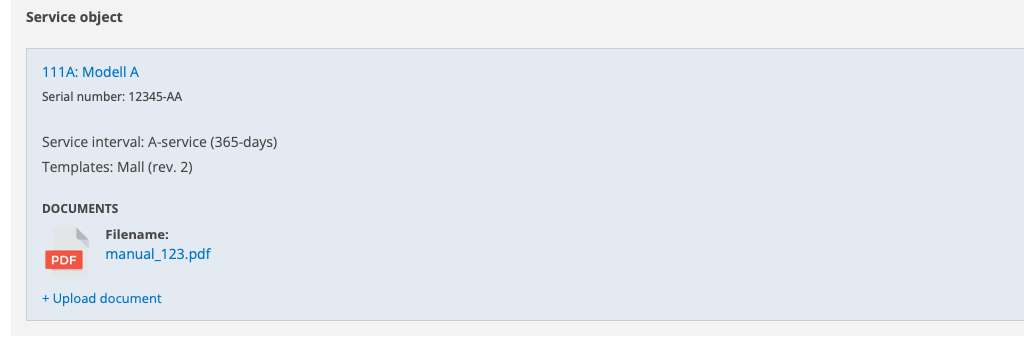

Här kan du också se och ladda upp dokument och bilder kopplade till serviceobjektet. Filerna kommer automatiskt att läggas till även i serviceobjektets dokumentation i Serviceobjektsregistret.

Service template

För varje serviceobjekt kan du lägga till servicepunkter samt sätta status för punkterna.
Skapa gärna Servicemallar med servicepunkter som ofta återkommer. Mallar skapar du och redigerar under menyn Service – Servicemall. Läs mer här.
Du kan lägga till servicepunkterna från en mall eller ersätta befintliga servicepunkter från objektet med de från servicemallen. Systemet frågar vilket innan du kan lägga till mallen.

Service components and their status

If you need to add a service point, click on +Add service component.
You can choose from these:

– Is measurement
– Yes/No
– Has Status
– Free text field
– Header

What you choose determines how the service components appear in the protocol. Here is an example of service components with some explanations added:

If you then select “Corrected” or “Should be addressed” for the service, a comment field will open where you can enter comments.

There is also a symbol for Not Applicable. If you select it, the service point will be closed, but you can always go back to it and it will remain for the next service.

You use the trash can to completely remove the service point. If you don’t see the trash can, you don’t have the permission to remove service components.

When you then perform the service order, by clicking Add Image you can take a photo or select a photo from your mobile or computer and upload it directly to the service component. The photo can be changed or removed.

All users have the permission to upload images here, so no permissions settings are required.

Comments

If there is a comment on the previous service order, it is automatically transferred and displayed here. This applies to both comments for service components and comments on the object.

Other material and Other time

Service order setting that provides a field for Other materials: Show Other articles
Article setting that provides a separate field for time: Separate time report articles

Here you add needs for other materials. You can search by article number, description and last used articles. Time only lists time articles.

The barcode symbol indicates that you can use your mobile phone or scanner to add aarticles via barcode. If you use your mobile phone, you will need an app for barcode reading.

Which barcode formats can be read is set by the administrator. See more under Article settings. Selectable formats are: UPC, UPC-E, EAN, EAN-8, Code 128, Code 39

Booked

Service order setting that affects: Update planned date when booking.



Enter who will perform the task and the booked day and time. Click on +Add a booking. The resource’s working hours are filled in automatically – if you have entered these under the user’s User settings.

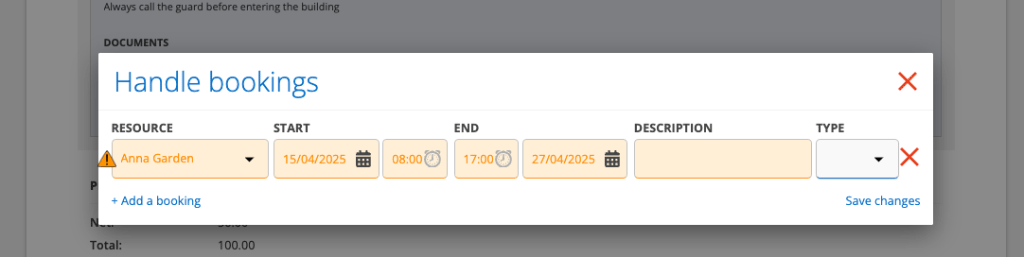

A warning triangle appears if you try to book a resource that is already booked on another order.

When you save a booking, you will be asked if you want to send a booking confirmation to the contact person for the order, the same applies when you change a booking. The date when the booking confirmation was sent is displayed in the order and if the booking was changed after the confirmation was sent.

The booking confirmation contains the name of the booked technician, the date and the order number. If the contact person for the order is a customer user, there is also a link to the order. If you want to send the booking confirmation again, click on Send booking confirmation. You can choose to send the confirmation as an email and/or text message.

Comment field

You can add comments to a service order. The comments can be changed or deleted, set to displayed to the customer or only internally. The comment is included in the service protocol.

Learn more about comments here.

Cost center

Fill in Cost center if any.

Customer order number

Fill in customer order number if any

Save

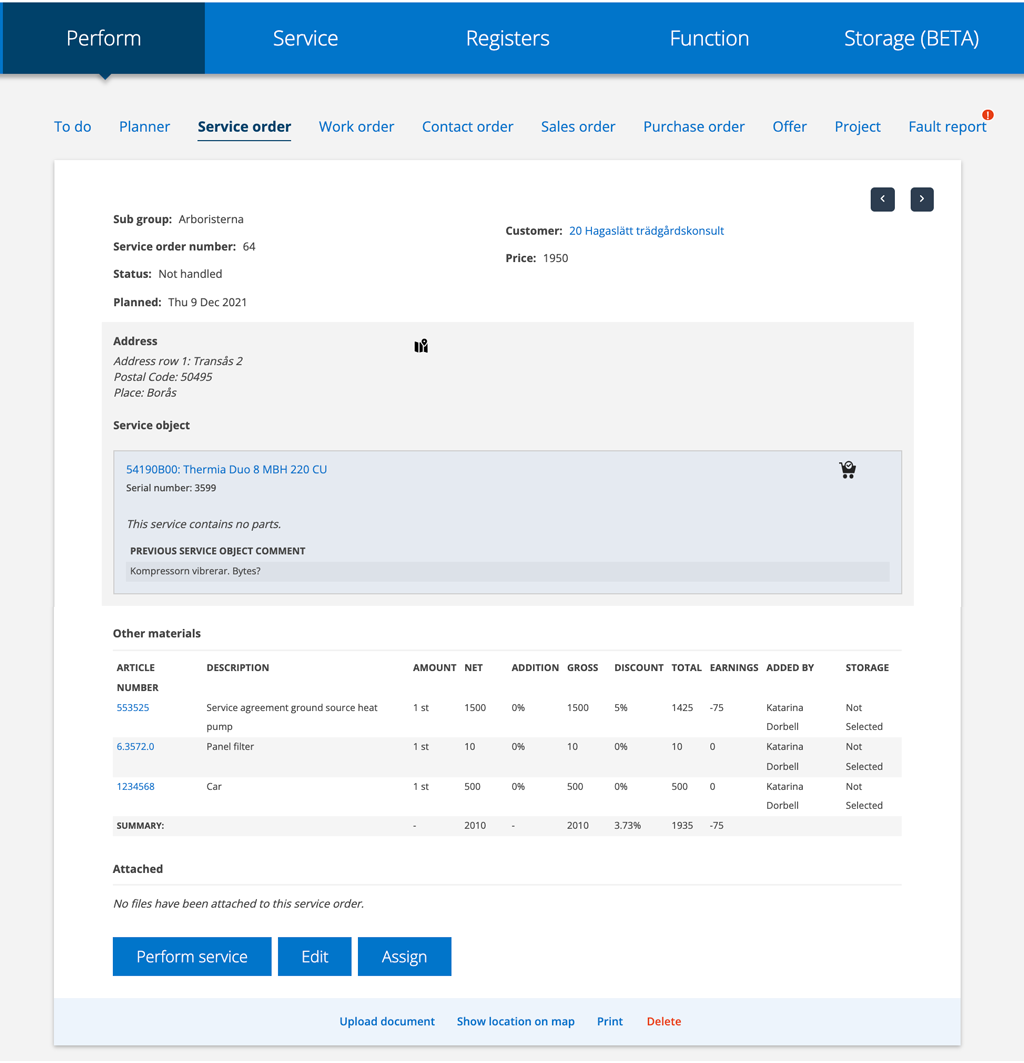

Click Save. The service order is created and given a serial number. Until the service has started, you can click Edit and fill in or delete information.

Once you have saved, you can:

• Assign the service order to a technician/resource.
• Perform service.

If a service has started, it says Continue at the bottom. At this point, you can no longer change the service order. However, if you delete the protocol, you can change and perform the service order again.

Create quote from service order

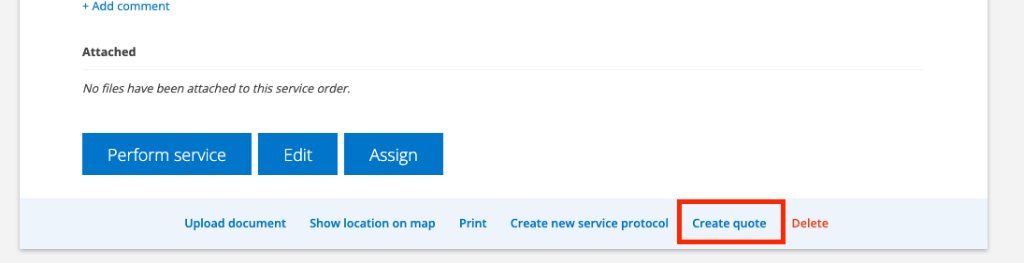

Once you have saved a service order, you can choose to create a quote. Click Create Quote at the bottom of the service order and a quote will be created with all the articles and objects on the service order.

If you change the price of articles or the content of the quote, you can update the service order by clicking Update generated orders at the bottom of the quote.

Learn about quotations.

Upload documents

If you want to supplement the order with documents, select Upload documents at the bottom of the page.

Delete Service order

It is possible to delete a service order as long as there is no protocol associated with the order. A service protocol is created as soon as you click Perform service.

Perform service – Create a Service protocol

Learn how in the article Create a Service protocol

Information to admins

There are a number of settings for service orders and permissions that can be made. Go to the Group Settings page (requires admin permission).

Modul settings under #serviceorderinställningar

• Email address for articles to be ordered. Here you enter the email address(es) of the person who will receive information about which articles to order. The email is sent automatically when an order is saved.
• Show custom info (about the service object in the service order.)
• Show service interval name (in the list of service orders on the customer record.)
• Show comment section from last service
• Show invoiced to (when invoiced to another customer)
• Show “other” articles
  Note: you can also select this on Service protocol settings.
• Update planned date when booking.
  If you add a booking, the planned date changes to the booking date.
• Show status
  The default setting is that this is checked and that the Status options are displayed on the order. See image below. If you prefer to use Custom statuses entirely, you can uncheck this.
• Auto-direct protocol.
  With this setting, the protocol opens directly instead of the order when you click on an order. Applies when the order is Performed. The default is that the service order opens and you then scroll down the page and click the Show protocol button.
• List setting: Sort on serial number as default

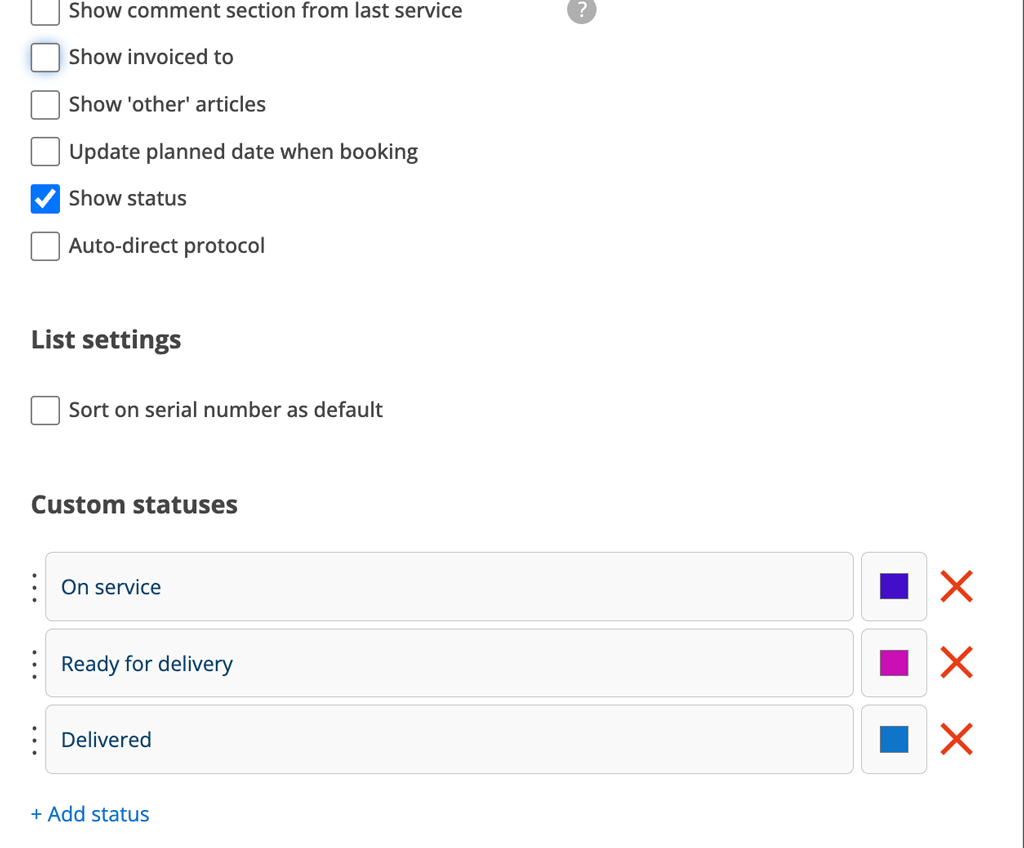

Custom status

Under Custom statuses you fill in the variants you use. The options are displayed when you create a service order and can also be changed on the saved order. If you only want to use this variant of status, you can uncheck Show status (see image above).

Print settings

Remove prices from print

Print templates

Upload any number of your own templates for printing. Learn more about printing templates.. Learn more about print templates.

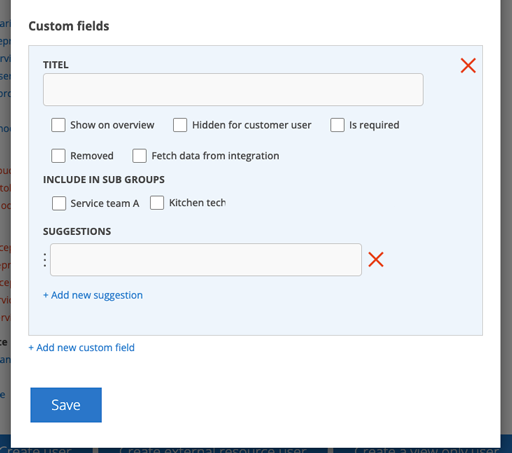

Create Custom fields

Create fields for your specific needs. Several settings can be made. Learn more about custom fields here.

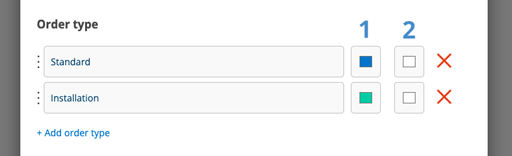

Create order types

Enter a name for the order type. Select a color in the field (1). Color (2) is the text color and does not need to be set. The color is listed as a dot after the type.

Permissions for users affecting service orders

 View, View assigned, Create, Edit, Edit assigned, Delete, Assign, Assign to self, Perform service, Perform assigned service, Perform partial, Remove/edit uploaded file
